Heavy-Duty Concrete Driveway Replacement in Apex, NC

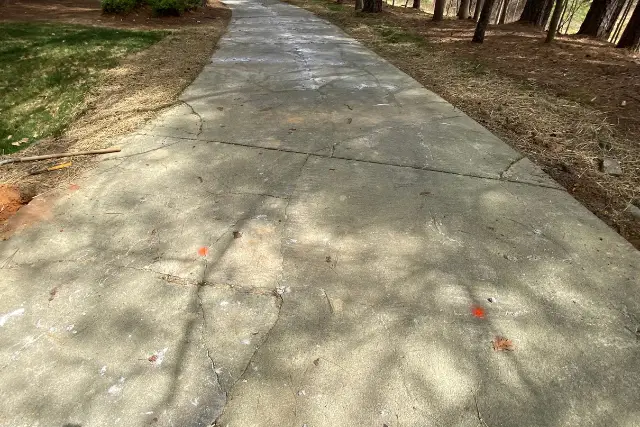

The Problem: Years of Damage to an Apex Driveway

The existing driveway had developed significant deterioration over time. Several conditions contributed to the damage:

The homeowner's initial plan was to repair the visibly damaged portions. That approach can make sense for some concrete problems. But during the site evaluation, RGPACK Concrete identified a larger concern: the driveway would continue to experience heavy utility vehicle traffic after the repairs were completed.That changed the recommended approach.

Looking Beyond the Cracks

A driveway replacement isn't simply a matter of removing old concrete and pouring new concrete in the same place.

How a driveway is used can influence the appropriate design.

For this Apex property, periodic utility truck access created loading conditions that were different from those of a typical residential driveway.

RGPACK Concrete discussed the situation with the homeowner and explained that installing another standard residential driveway could leave the property susceptible to similar problems in the future.

Rather than simply replacing the damaged areas, the homeowner elected to invest in a heavy-duty reinforced driveway designed around the property's expected use while maintaining the appearance of a residential driveway.

The Homeowner's Goals

The homeowner wanted the new project to:

The goal wasn't simply to make the driveway look new.

It was to address the conditions that had contributed to its deterioration and build a solution appropriate for the property's future needs.

Preparing the Property for the New Driveway

Once the existing driveway was removed, RGPACK Concrete excavated beyond the original approximately 4- to 5-inch concrete thickness.

A compacted aggregate base was then installed in multiple lifts.

Proper base preparation is an important part of concrete construction. The finished slab depends on the conditions supporting it, so rebuilding the foundation beneath the driveway was an important part of this project's design.

Rather than simply reproducing the existing driveway, RGPACK Concrete prepared the site for the heavier-duty replacement.

Replacing the Damaged Culvert

The driveway wasn't the only issue beneath the surface.The property's existing culvert had also been damaged.

RGPACK Concrete recommended replacing the culvert while the driveway was already removed.

This allowed the homeowner to address the drainage infrastructure before installing the new concrete rather than potentially excavating through a new driveway later.

The recommendation also helped coordinate several parts of the project during a single mobilization.

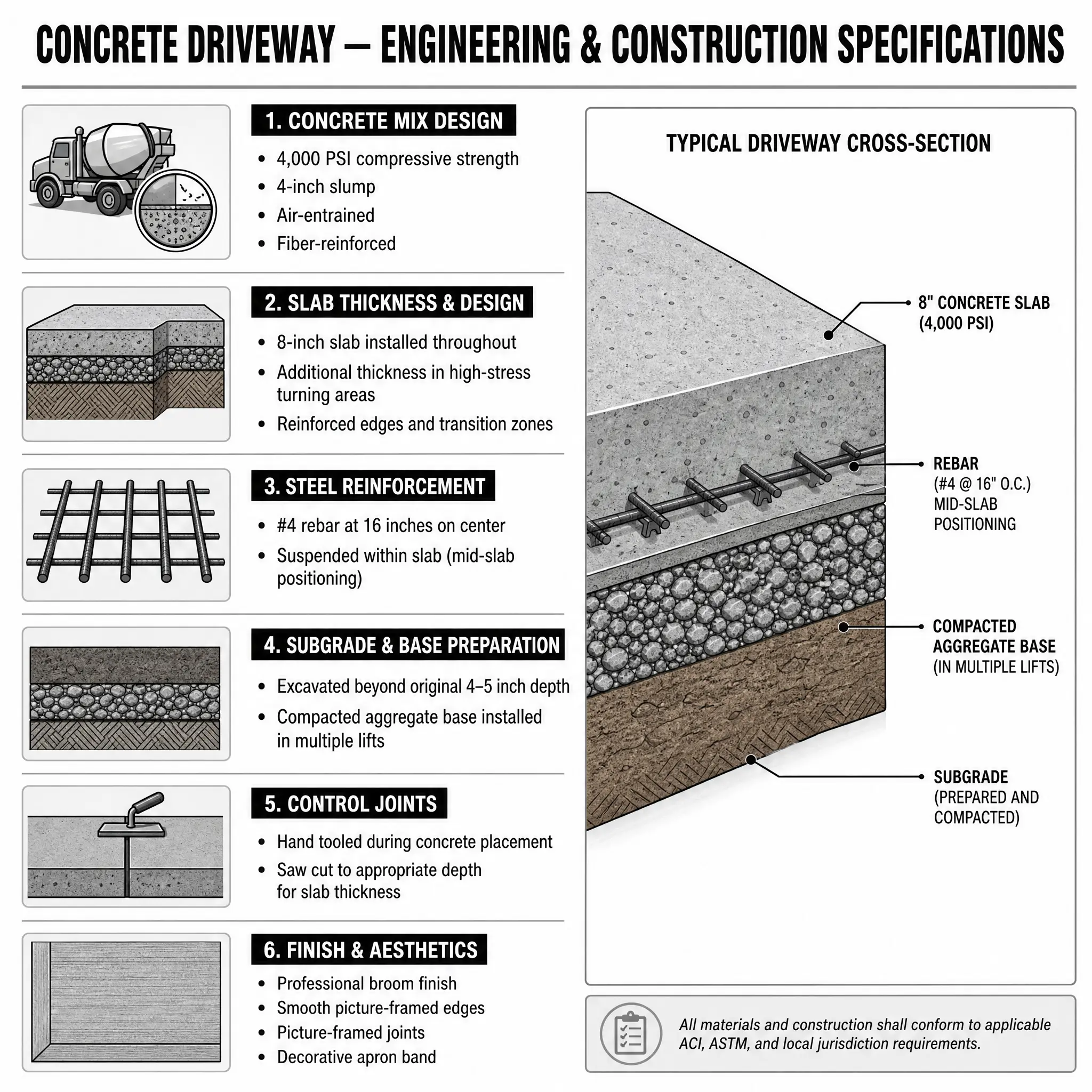

Building the Reinforced Concrete Driveway

The new driveway was constructed using 4,000 PSI concrete with a 4-inch slump.

The concrete was air-entrained and fiber-reinforced.

The slab was constructed at 8 inches thick throughout, with additional thickness incorporated in high-stress turning areas, edges, and transition zones.

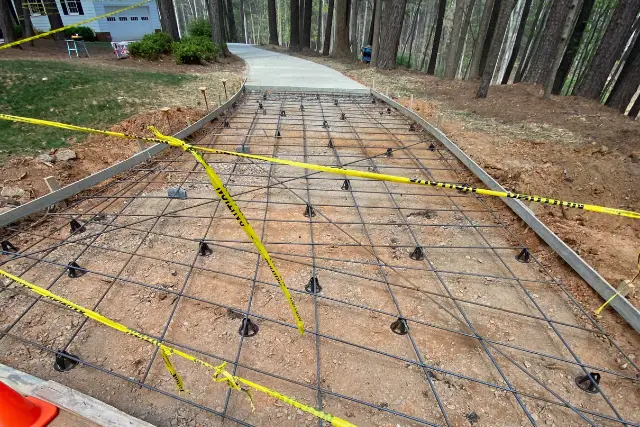

Reinforcement With #4 Rebar

The driveway was reinforced using #4 rebar spaced 16 inches on center. The reinforcement was suspended within the slab as part of the driveway's structural design.

The reinforcement strategy was selected based on the property's expected use and the need to accommodate recurring heavy utility vehicle access.

Concrete Specifications

The project used:

These specifications were selected for this particular project.

Not every residential driveway requires the same combination of thickness, concrete strength, or reinforcement. The appropriate specifications depend on factors such as expected vehicle loads, site conditions, drainage, base conditions, turning movements, and how the property will be used.

Managing Control Joints

Control joints were hand-tooled during concrete placement and later saw-cut to achieve appropriate depth for the slab thickness.

Joint placement was incorporated into the construction process as part of the overall driveway design.

The goal was to establish intentional locations for movement rather than leaving jointing to chance.

A Heavy-Duty Driveway With a Residential Finish

Although durability was a major priority, the homeowner still wanted the driveway to complement the property.

RGPACK Concrete finished the driveway with a professional broom finish.

The project also incorporated:

These details gave the large driveway a more finished residential appearance while maintaining the functional requirements of the project.

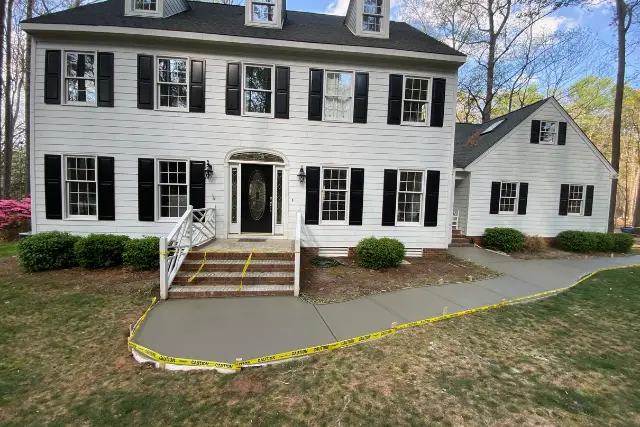

Additional Walkways Completed During the Project

The homeowner also elected to replace additional walkways during the same project.

Completing the walkways while the crew was already mobilized helped create a consistent finished appearance across the property.

It also reduced the likelihood of needing future work that could disturb the new driveway.

Coordinating the additional concrete work as part of the same project allowed the homeowner to address multiple improvements at once.

How the Apex Driveway Was Built

The project followed a structured construction process from initial layout through final cleanup.

1. Site Layout

The project area was laid out and prepared for demolition.

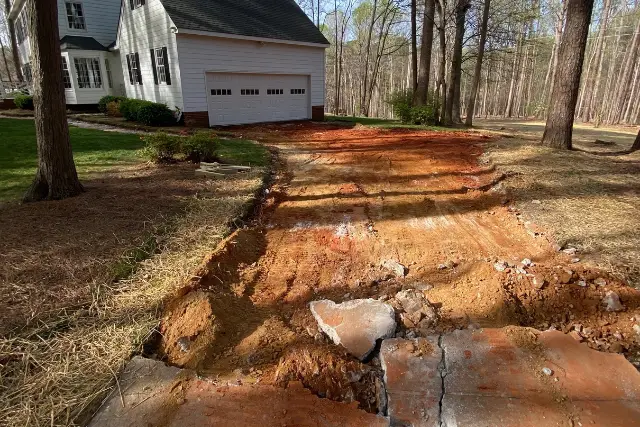

2. Demolition

The existing deteriorated driveway was removed.

3. Additional Excavation

The site was excavated to accommodate the new driveway design and supporting base.

4. Aggregate Base Installation

Aggregate was installed in multiple lifts.

5. Base Compaction

The aggregate base was compacted to establish the prepared foundation for the new driveway.

6. Culvert Replacement

The damaged culvert was replaced before the new driveway was installed.

7. Form Installation

Forms were installed to establish the driveway's dimensions and geometry.

8. Reinforcement Placement

#4 rebar was placed at 16-inch centers and suspended within the slab.

9. Concrete Placement

The 4,000 PSI, fiber-reinforced, air-entrained concrete was placed.

10. Finishing

The concrete was finished and shaped to establish the desired surface and decorative details.

11. Hand-Tooled Joints

Control joints were established during placement.

12. Broom Finish

The driveway received its professional broom finish.

13. Saw-Cut Joints

Additional joints were saw-cut to the appropriate depth for the slab.

14. Cleanup

The work area was cleaned and prepared for the final inspection.

15. Final Walkthrough

RGPACK Concrete completed a final walkthrough with the homeowner.

The Finished Apex Driveway

The completed project delivered a substantially upgraded driveway designed around the property's specific demands.

The finished project included:

Most importantly, the project addressed the conditions contributing to the original driveway's deterioration rather than simply replacing the most visibly damaged concrete.

The Biggest Lesson From This Apex Driveway Project

The most valuable part of this project wasn't the amount of concrete poured.

It was identifying why the existing driveway was failing.

A homeowner can look at cracked concrete and see a surface problem. A contractor needs to consider what caused the damage and what conditions the replacement will need to handle.

In this case, continued utility vehicle traffic was an important consideration.

The project also required attention to:

Those factors influenced the final approach.

Instead of designing the replacement solely around what the driveway had been, RGPACK Concrete designed it around what the driveway needed to handle going forward.

What We'd Tell Another Apex Homeowner

If your property experiences occasional or regular heavy vehicle traffic, don't evaluate a driveway replacement based solely on the condition of the concrete you can see.

Before replacing the driveway, consider:

A properly planned driveway can provide better long-term value than repeatedly repairing concrete without addressing the conditions contributing to the damage.

That doesn't mean every residential driveway needs an 8-inch slab, #4 rebar, or heavy-duty reinforcement.

It means the driveway should be evaluated and designed around the actual requirements of the property.
